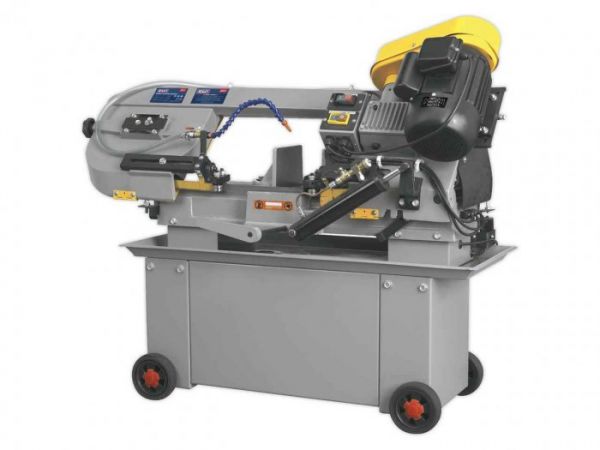

Bandsaw 300mm Horizontal Hydraulic Arm

Manufactured to comply with Safety of Machinery (Safety) Regulations 1992 (and amendments) and fully CE approved.

Saw arm is fitted with hydraulic damping to prevent the arm being dropped onto the workpiece and to ensure smooth cutting performance.

Coolant fluid system and main power controls are switched on individual circuits.

Heavy -duty single phase electric motor.

Specifications:

• Model No - SM35CE
• Capacity 90° - Round - Ø170mm
• Capacity 90° - Square/Rectangular (H x W) - 170x200mm
• Capacity 90° - Bar (H x W) - 50x300mm
• Capacity 45° - Round - Ø80mm]
• Capacity 45° - Square/Rectangular (H x W) - 170x80mm
• Blade Size - 2362 x 19 x 0.81mm
• Blade Speeds - 34, 41, 59, 98mtr/min
• Motor Power - 550W
• Supply - 230V - 1ph
• Weight - 137kg

Fully guarded and fitted with pulley cover safety switch.
