Mitre Saw Bosch 12" 240v

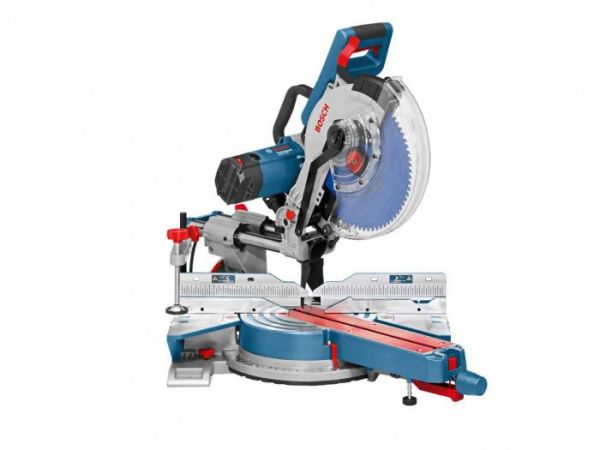

Bosch GCM 12 SDE 240v 12in High Capacity Mitre Saw - 0601B23170

The Bosch GCM12SDE2 240v 12in High Capacity Mitre Saw offers users an impressively high cutting capacity with variable speed for a huge range of applications. It has a cutting capacity of 120mm vertical and 400mm horizontal. The variable cutting speed ensures it is suitable in a range of materials, with a saw blade that can be changed quickly and easily without the need for tools. This saw is ideal for completing cross, groove, bevel and mitre cuts in a series of wood materials like timber beams and wood composites, as well as aluminium and plastic. The GCM 12 GDL features vertical and horizontal hinged arms with sealed bearings. The arrangement guarantees a maintenance-free, super smooth and highly accurate action.

Features and Benefits

• Vertical cutting capacity of 120 mm
• Variable speed for adapting the cutting speed to the material
• SDS saw blade changes
• Speed pre-selection of 3,100 – 4,000 rpm
• Intuitive bevel lock
• Integrated table extensions for material support
• Easy changing of the saw blade
• Bevel setting of up to 47° on both sides

Technical Specification:

Cutting capacity, 0°: 85 x 370 mm
Cutting capacity at 0° with spacer: 120 x 400 mm
Cutting capacity, 45° mitre: 90 x 250 mm
Cutting capacity, 45° incline: 38 x 370 mm
Mitre setting: 52 ° L / 60 ° R
Bevel setting: 47 ° L / 47 ° R
Depth x length x height: 86 x 60 x 53 cm
No-load speed: 3.100 – 4.000 rpm
Saw blade diameter: 305 mm
Saw blade bore diameter: 30 mm
Weight: 28.6 kg
Rated power input: 1.800 W

Noise/vibration information
Sound pressure level: 92 dB(A)
Sound power level: 105 dB(A)
Uncertainty K: 3 dB
Noise level: The A-rated noise level of the power tool is typically as follows: Sound pressure level 92 dB(A); Sound power level 105 dB(A). Uncertainty K= 3 dB.

Supplied With:

1 x Bosch GCM 12 SDE 240v 12in High Capacity Mitre Saw
